Layout

The system consists of a central unit to which up to six MultiJet and/or MultiJet&Brush cleaning systems can be connected.

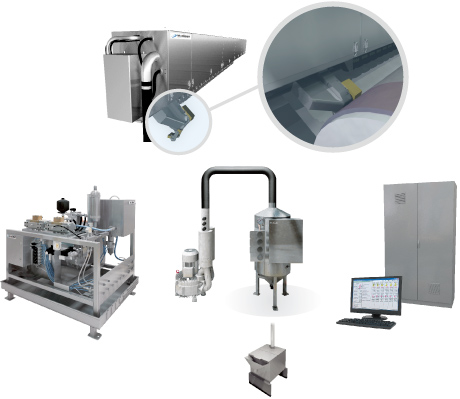

The whole system consists of the following units:

• Cleaning unit with integrated multiple water jet, air knives and evacuation vacuum traversing the surface
• High pressure water pump unit for maximum 400/600 bar pressure
• High capacity vacuum fan for vacuum of -0.3 bar at 17m³/min
• Cyclone separator and water lock for successful evacuation of all contaminants
• Electric cabinet with PLC control system and logic
• Operator touch panel

MultiJet&Brush are protected by patent worldwide.
